Discover Continuity Camera for tvOS

Highlight

tvOS 17 introduces Continuity Camera and Mic, iPhone/iPad can be used as a camera and microphone input source for Apple TV. Existing iOS camera apps can adapt to tvOS simply by adding Device Discovery, and with the voice processing API of AVAudioEngine, new scenarios such as video conferencing and live broadcasting can be realized.

Core Content

There were previously only two categories of apps on tvOS: content playback (streaming) and games. Now with cameras and microphones, new scenarios such as content creation, video conferencing, and live broadcasts are possible.

(00:25) tvOS 17’s Continuity Camera is similar to the implementation on macOS Ventura: put your iPhone or iPad close to the Apple TV, and the camera and microphone become the system’s input devices.

The existing iOS code is basically available

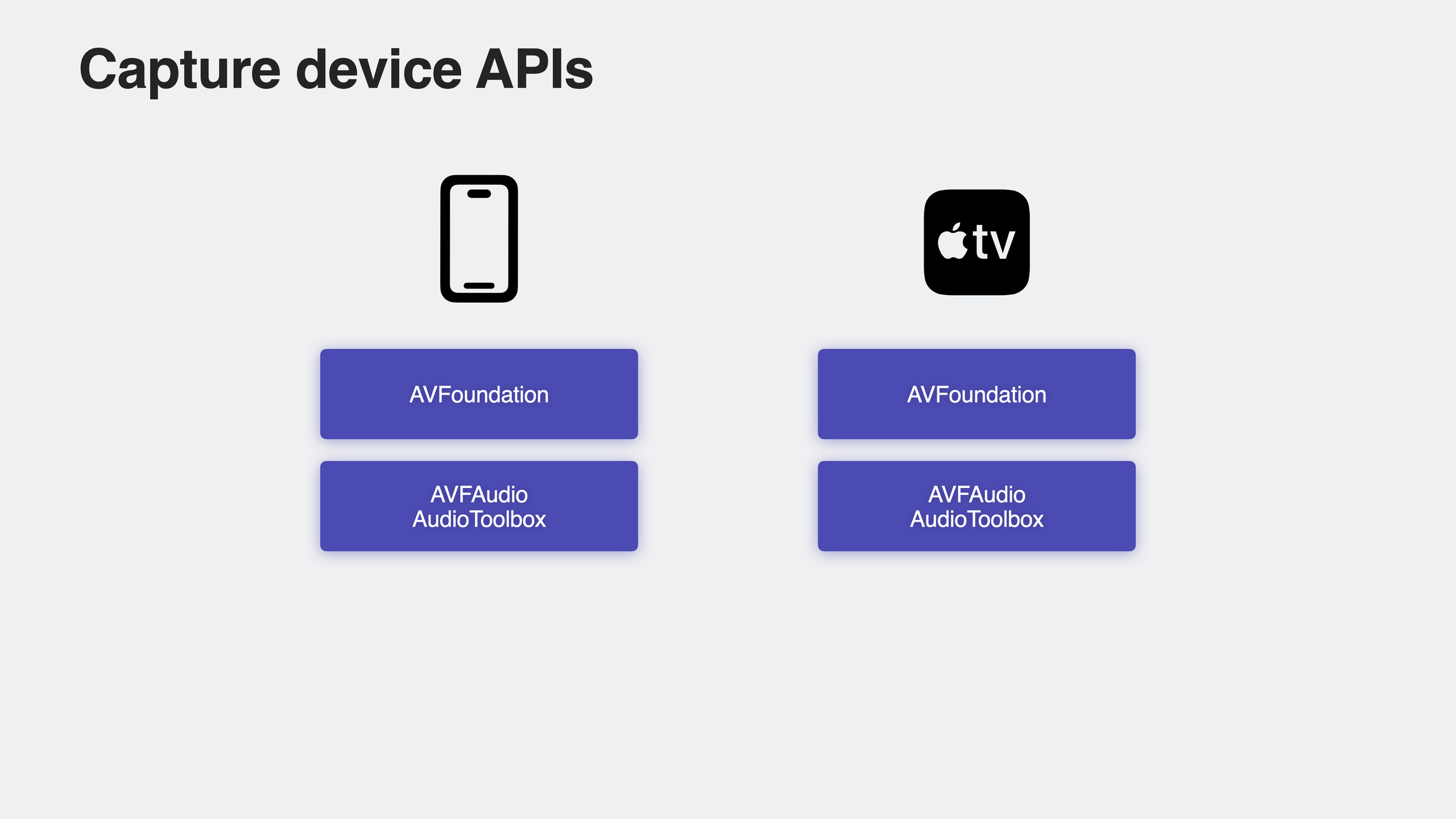

(02:15) tvOS now supports the full set of AVFoundation capture APIs on iOS:

AVCaptureDevice / AVCaptureDeviceInput:Camera and microphone -AVCaptureSession: Capture session master -AVCaptureOutput: Output (photos, videos, metadata) -AVCaptureVideoPreviewLayer: Real-time preview

If you already have an iOS camera app, most of the code compiles and runs directly on tvOS. Just add Apple TV as a supported platform in the target of your Xcode project.

Device discovery is the key difference

(03:46) Apple TV does not have a built-in camera, so available devices must be discovered first. AVKit provides new device selectors:

SwiftUI：

@State private var showDevicePicker = false

// In the body
.continuityDevicePicker(isPresented: $showDevicePicker) { device in
    // device is an AVContinuityDevice
    setActiveVideoInput(device)
}

UIKit：

let picker = AVContinuityDevicePickerViewController()
picker.delegate = self
present(picker, animated: true)

// Delegate callback
func continuityDevicePicker(_ picker: AVContinuityDevicePickerViewController,
                            didConnect device: AVContinuityDevice) {
    setActiveVideoInput(device)
}

Key points:

AVContinuityDeviceContains associatedAVCaptureDevice(video and audio)
Selector lists all devices of users logged into Apple TV, supports guest pairing
After the device is connected, it will also passAVCaptureDeviceDiscoverySessionand KVO notification releases

Monitor device availability

(09:58) The device may be disconnected at any time, and the App needs to handle this state change:

// Monitor changes to the system-preferred camera
AVCaptureDevice.systemPreferredCamera
// On tvOS, only the continuityCamera type exists

Monitor with KVOsystemPreferredCamera：

nil: No camera available
Notnil: Continuity Camera is available

Start when device is availableAVCaptureSession, stops the session when the device is unavailable and prompts the user to connect a new device.

Complete tvOS adaptation code

(11:54) The talk demonstrates the complete process of adding tvOS support to existing iOS apps. existContentViewmiddle:

#if os(tvOS)
@State private var showDevicePicker = false
#endif

var body: some View {
    // ... existing UI ...
    #if os(tvOS)
    Button("Connect Camera") {
        showDevicePicker = true
    }
    .continuityDevicePicker(isPresented: $showDevicePicker) { device in
        activateContinuityDevice(device)
    }
    .task {
        // If a device is already connected, activate it directly
        if let device = AVCaptureDevice.systemPreferredCamera {
            activateContinuityDevice(device)
        }
    }
    #endif
}

Key points:

use#if os(tvOS)Compile conditions to isolate tvOS-specific code -.taskCheck if there is already a connected device when the view appears
Button lets user manually trigger the device selector

Microphone API

(17:40) tvOS 17 supports microphones for the first time. Audio Session adds support for input devices:

playAndRecordcategory andvoiceChat/videoChat mode
inputAvailableProperties support KVO, monitor microphone availability
The recording permission API is consistent with iOS

Enter device type:

Continuity Microphone: iPhone/iPad viaAVContinuityDeviceget
Bluetooth: AirPods or other headphones, queried via existing Audio Session API

(18:55) PassedAVAudioSessionPortIdentify device type:

let continuityDevice: AVContinuityDevice
for port in continuityDevice.audioSessionPorts {
    if port.portType == .continuityMicrophone {
        // This is the Continuity microphone
    }
}

Echo Cancellation

(23:32) Echo cancellation in tvOS is more complex than in iOS: recording takes place on the iPhone, playback is output from the Apple TV to various sound devices (TV speakers, Sound Bar, HomePod, etc.), and the user may be several feet away from the microphone.

tvOS 17 has new voice processing and echo cancellation technology built into it. Enabling it is simple:

let engine = AVAudioEngine()
engine.inputNode.voiceProcessingEnabled = true

Or use Audio Unit:

// AU VoiceIO with VoiceProcessingIO subtype

Detailed Content

Storage considerations

(15:27) tvOS’s file storage is different from iOS:

.documentDirectoryNot available on tvOS, an error will be reported when running
can only be used.cachesDirectory- Cache data may be cleared between app restarts
Content creation apps should upload data to the cloud as soon as possible and delete local copies after use

Alternative:

CloudKit: Supports storing data by user
iCloud: Data synchronization in multi-user scenarios

Interactive differences

(15:02) tvOS has no touch events, and users interact with the system through the directional keys and buttons on the remote control. The app needs to adapt to Focus Engine.

Apple TV is a shared device that supports multiple users and guests. Apps need to take this into consideration when processing personal information.

Recording API selection

API	Applicable scenarios
`AVAudioRecorder`	The simplest audio file recording
`AVCapture`	Record video and audio simultaneously
`AVAudioEngine`	Complex audio processing (such as karaoke)
`AudioQueue`	Non-real-time recording
`AudioUnit`(AU RemoteIO / AU VoiceIO)	Directly operate real-time audio I/O

Core Takeaways

What to do: Add tvOS support to the existing iOS camera app
Why is it worth doing: The code reuse rate is extremely high, just add Device Discovery. The living room scene opens up a whole new user group
How to start: Add Apple TV to the Xcode target, use#if os(tvOS)Add a device selector and the rest of the capture logic is completely reused
What to do: Develop a tvOS video conferencing app
Why it’s worth it: tvOS 17 + Continuity Camera makes large-screen video conferencing possible. With the voice processing of AVAudioEngine, echo cancellation is automatically completed.
How to start: UseAVContinuityDevicePickerViewControllerSelect device and createAVCaptureSession, for video outputAVCaptureVideoDataOutput,audio enabledvoiceProcessingEnabled
What to do: Integrate Continuity Camera in the live streaming app
Why it’s worth it: Users can use the iPhone’s high-definition camera as a live broadcast source to see comments and gifts in real time on the big screen
How to start: Reuse iOSAVCaptureSessionConfigure, add tvOS-specific device discovery process, and pay attention to handling device disconnection and reconnection
What to do: Add a tvOS version to education/fitness apps and use the camera for motion recognition
Why it’s worth doing: Large screen + camera = a new way of interaction. Fitness apps can analyze user movements, and education apps can interact with gestures.
How to start: UseAVCaptureMetadataOutputObtain face/human body detection data for each frame and provide real-time feedback on the big screen
