Build Metal-based Core Image kernels with Xcode

Highlight

Apple provides a .ci.metal build workflow for Core Image kernels: Xcode uses -fcikernel and -cikernel at build time to produce .ci.metallib, which the app loads at runtime with CIColorKernel and applies to CIImage—reducing runtime compilation and gaining Metal syntax checking.

Core Content

When writing custom Core Image filters, developers care about two things: whether filters can enter Core Image’s automatic tiling and concatenation pipeline, and whether shader syntax errors surface early in development. This session’s answer is to write CIKernel in Metal Shading Language and let Xcode complete Core Image-specific compilation and linking during the app build.

The path breaks into five steps. Add .ci.metal and .ci.air build rules to the target; put kernels in source files ending with .ci.metal; write Metal functions following Core Image function signatures; finally load .ci.metallib in Swift and generate a new CIImage through CIColorKernel.apply.

The demo is an HDR zebra stripe filter. It reads an input pixel and destination coordinates, drawing red zebra stripes in HDR regions above SDR white point. The example is small but covers the full chain: .ci.metal source, Metal types provided by Core Image, runtime loading, and outputImage on a CIFilter subclass.

Detailed Content

1. Add .ci.metal to the Xcode build first (01:20)

Core Image Metal code cannot use ordinary Metal compute or graphics shader compilation. The session recommends adding two custom build rules to the target.

• The first matches .ci.metal files, invokes the Metal compiler with -fcikernel, and produces .ci.air.
• The second matches .ci.air files, invokes the Metal linker with -cikernel, and puts the product in app resources with a .ci.metallib suffix.
• When creating new source files, the filename must end with .ci.metal so the first build rule matches.

Key points:

• -fcikernel and -cikernel come from the transcript build steps—not default Metal shader parameters.
• After compilation results enter app resources, Swift can find them with Bundle.main.url(forResource:withExtension:).
• This moves kernel compilation from runtime to build time while keeping Xcode syntax highlighting and build-time syntax checking.

2. Write Core Image kernels in .ci.metal files (03:08)

The example kernel comes from an HDR video scenario. It receives an input pixel, a time parameter, and destination coordinates, outputting red pixels in highlight regions.

// MyKernels.ci.metal
#include <CoreImage/CoreImage.h> // includes CIKernelMetalLib.h
using namespace metal;

extern "C" float4 HDRZebra(coreimage::sample_t s, float time, coreimage::destination dest)
{
    float diagLine = dest.coord().x + dest.coord().y;
    float zebra = fract(diagLine / 20.0 + time * 2.0);
    if ((zebra > 0.5) && (s.r > 1 || s.g > 1 || s.b > 1))
        return float4(2.0, 0.0, 0.0, 1.0);
    return s;
}

Key points:

• #include <CoreImage/CoreImage.h> brings in ordinary Metal classes and Core Image kernel types.
• extern "C" is a Core Image kernel function declaration requirement.
• coreimage::sample_t represents one pixel from the input image; the transcript states it is a linear, premultiplied-alpha RGBA float4 usable for SDR or HDR images.
• coreimage::destination provides destination pixel coordinates; the example uses dest.coord().x + dest.coord().y for diagonal stripes.
• The condition s.r > 1 || s.g > 1 || s.b > 1 corresponds to HDR pixels above normal SDR white 1.

3. Load .ci.metallib with CIColorKernel (04:58)

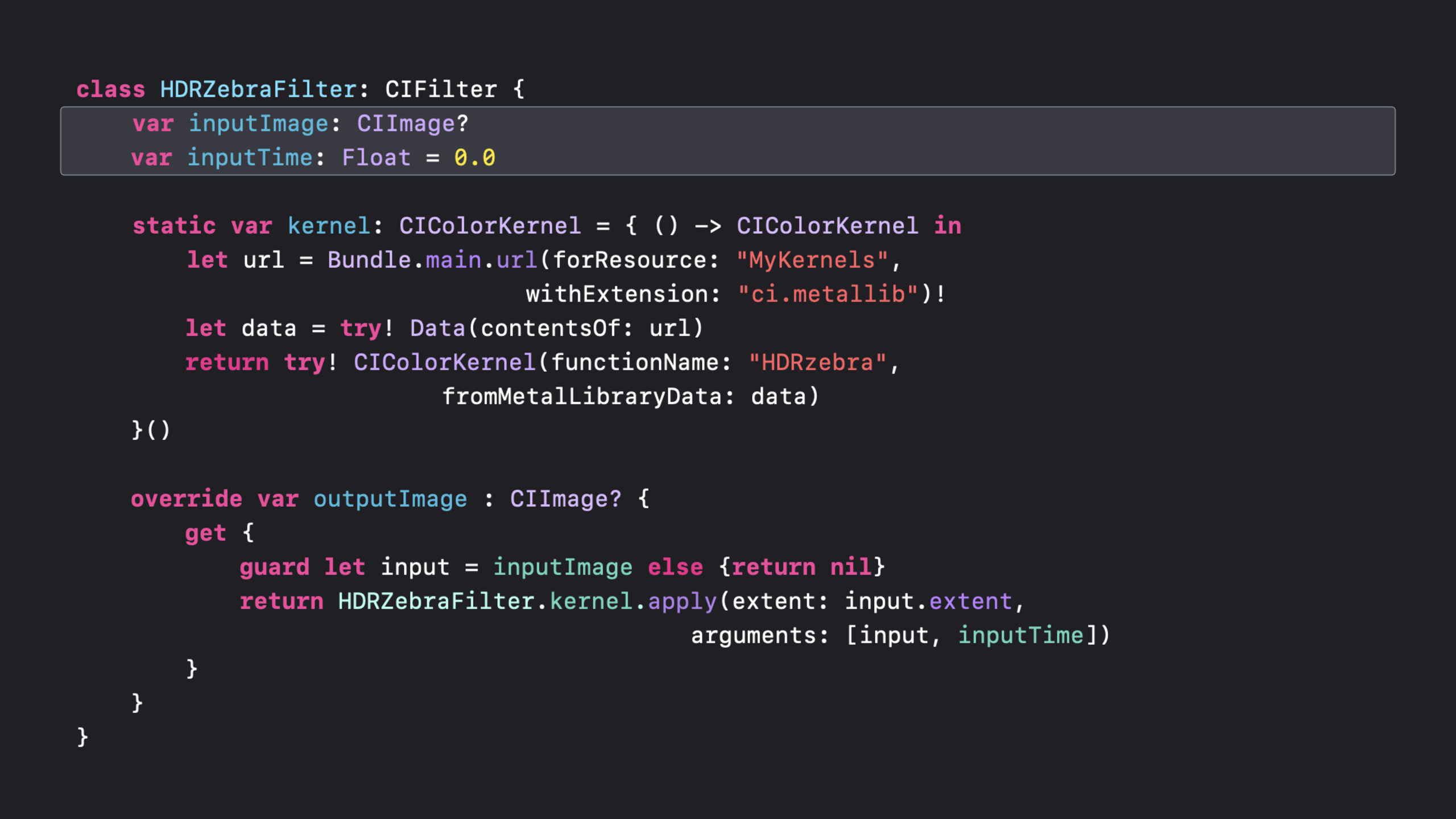

After Metal kernels compile into resources, the Swift side typically wraps them in a CIFilter subclass. The session recommends putting the CIKernel object in a static property so metallib reading and initialization happen only once.

class HDRZebraFilter: CIFilter {
    var inputImage: CIImage?
    var inputTime: Float = 0.0

    static var kernel: CIColorKernel = { () -> CIColorKernel in
        let url = Bundle.main.url(forResource: "MyKernels",
                                  withExtension: "ci.metallib")!
        let data = try! Data(contentsOf: url)
        return try! CIColorKernel(functionName: "HDRzebra",
                                  fromMetalLibraryData: data)
    }()

    override var outputImage: CIImage? {
        get {
            guard let input = inputImage else { return nil }
            return HDRZebraFilter.kernel.apply(extent: input.extent,
                                               arguments: [input, inputTime])
        }
    }
}

Key points:

• Bundle.main.url(forResource: "MyKernels", withExtension: "ci.metallib") corresponds to the resource file from the build rules.
• Data(contentsOf:) reads metallib binary data.
• CIColorKernel(functionName:fromMetalLibraryData:) retrieves the specified kernel from the Metal library.
• The static property loads and initializes only on first use, avoiding per-frame resource reads.
• outputImage checks inputImage first, then uses apply(extent:arguments:) to create a new CIImage recipe.

4. Remember what this path is good for (00:20)

The session’s opening benefits are specific. Metal-based Core Image kernels still use CIKernel automatic tiling and concatenation; compilation moves to app build time, reducing runtime compilation overhead; the Metal version also accesses high-performance capabilities like gather reads, group writes, and half-float math.

Developer experience is more direct too. .ci.metal is written in Xcode with syntax highlighting at input and syntax checking at build. For filters that need constant visual tweaking, earlier error exposure means lower iteration cost.

Core Takeaways

• What to do: Add an overexposure zebra overlay to HDR video preview. Why it’s worth doing: The session’s HDRZebra kernel already shows how to detect pixels above SDR white 1 and mark regions with red stripes. How to start: Put the example in MyKernels.ci.metal, then have HDRZebraFilter accept inputImage and animation time parameters.

• What to do: Migrate custom filters in a photo editing app to .ci.metal. Why it’s worth doing: Build time runs Core Image-specific Metal compilation and linking, exposing syntax errors during build. How to start: Add .ci.metal and .ci.air build rules to the target, declare filter functions as extern "C", and load with CIColorKernel from .ci.metallib.

• What to do: Add real-time speed control to filter preview. Why it’s worth doing: The example’s inputTime passes to the kernel as a parameter; apply(extent:arguments:) supports passing the input image and time value together to generate a new CIImage. How to start: Keep inputTime on the CIFilter subclass, update it with a slider or playback clock, and pass [input, inputTime] in the arguments array.

• What to do: Establish a “build failure stops the line” shader validation flow for video tools. Why it’s worth doing: The session explicitly puts Metal kernel syntax checking at build time—suitable for blocking errors early in CI or local builds. How to start: Name all Core Image Metal sources .ci.metal, ensure target build rules generate .ci.metallib, and have the app load only build artifacts at launch.
